Slit Lamp

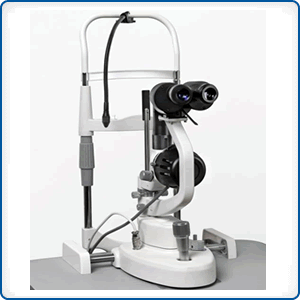

Slit Lamp C100

Characeristics

*The optical lens is made of glass imported form Germany.

*All the lens are multi-coated,mildewproof and anti_reflection.

*Two step magnifications,10x,16x for choice.

Specifications
Microscope Type	parallel included angle type
Magnification	three-step magnifications
Eye piece	10x
Total Magnification and field of View(mm)	10(φ18)、16（φ14.5）
Range of Pupil Distance(mm)	55-82
Adjustment of Diopter	±6D
Slit Width(mm)	0-9 adjustable
Slit Height(mm)	1-8 adjustable
Slit Angle	0-180^O
Slit Inclination	5^O、10^O、15^O、20^O
Light Spot Diameter(mm)	φ9、φ8、φ5、φ3、φ2、φ1、φ0.2
Filter	heat absorption,grey,redfree,cobalt blue
IIIumination Bulb	12V/300W halogen bulb
Voltage/frequency	AC220V±10%/60HZ±1Hz、AC110V±10%/50Hz±1Hz
Power	58VA
Electrical Safety Standard	Conform to Standard IEC 601-1、Class1TypeB
Whole Packing Volume	0.30m³
Carton Number	2
Total Weight	51kg

Hand Held Slit Lamp

Specifications
Magnification	5x magnifications
Slit Size(mm)	0.5x5--φ5 adjustable
working distance(mm)	50
IIIumination Bulb	6V/5W halogen bulb
Ra	99.2%

SChiotz type Tonometer

The design theory is to use pointer to press cornea and then indirectly get the intraocular pressure.Each division on the scale corresponds to 1/20 mm corneal depth.
Characteristics
*Schiotz type

*All the parts contacting corner are stainiess steel which is anti-acid and does no harm to issues.

*The instrument is safe,reliable,applicable and convenient.

Goldman Applanation Tonometer

The instrument is designed on the basis of Goldman tonometer.Both T type and R type are available.
*When used with Slit Lamp,it can be used to examine the eyes and measure the ocular pressure.
*Accurate measurement and total tolarance is less than 0.066Kpa(0.55Hg)
*Directly get the ocular pressure.
*The measured ocular pressure is not affected by hardness of eye.
*The affected ocular volume is just 0.56 cubic millimeter.
*Adjustable measuring ensured the long-term stability and reliability.
