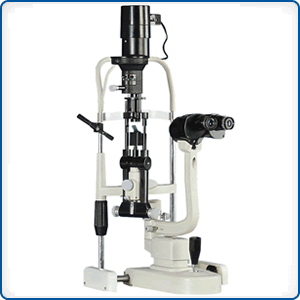

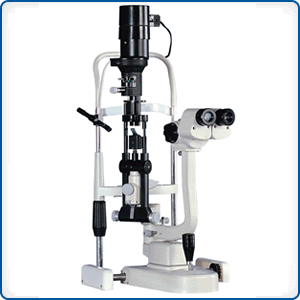

Slit Lamp
|
|
|
Slit
Lamp C300
|
|
|
Specification:
Optic Head:
*Microscope Type: parallel
*Eyepiece 12.5x
*Total Magnification 6x(§æ33mm);10x(§æ22.5mm);16x(§æ14mm);
25x(§æ8.8mm);40x(§æ5mm)
*Diopter Adjustment: -5D~+3D
lllumination
*Slit width: 0mm~9mm continuously adjustable
*Slit Height 1mm~8mm continuously adjustable
*Aperture Diameter§æ9,§æ8,§æ5,§æ3,§æ2,§æ0.2(mm)
*Slit Angle: 0°~180°
*Slit lnclination: 5°,10°,15°,20°
*Filter: heat absorption,grey,redfree,cobalt blue
*lllumiination Bulb: 12v30w halogen bulb
*fixation Bulb : red LED
Power Supply: 110V/220V±;60/50Hz;58VA
Motorized Table:
*Height: 640mm~860mm adjustable
*Weight: 20kgs
*Maximum Load 50kgs |
|
|
|
|
|
|
Specification:
Optic
Head:
*Microscope Type: Converging Stereoscope
*Total Magnification:
10x,16x,(10xeyepiece), 16x,25.6x(16x eyepiece)
lllumination
*Slit Width: 0mm~9mm continuously adjustable
*Slit Height:
1mm~8mm continuously adjustable
*Apertuer Diameter: : §æ9,§æ8,§æ5,§æ3,§æ2,§æ0.2(mm)
*Slit Angle: 0¡ã~180¡ã
*Slit lnclination: 5¡ã,10¡ã,15¡ã,20¡ã
*Filter: heat absorption,grey,redfree,cobalt blue
*lllumination
Bulb: 12V30W halogen bulb Power supply: 110V/220V/¡À10V;50/60Hz,58VA
Motorized Table:
*Height: 640-860mm adjustable
*Weight:
20kgs
*Maximum Load: 50kgs |
| |
