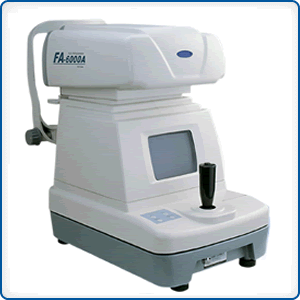

| Auto-Refractor |
|
| FA6000,FA6000A
& FA6500 |
 |
Specification:
Measurement range:
Sphere:-20D~+20D(VD=12),0.12D steps
Cylinder:-8D~+8D,0.12D steps
Axis:0~180°,1° steps
Pupil Distance:45~85mm,1mm steps
Vertex Distance:0mm,12mm,13.75mm
Min Pupil Size:ф2.2mm
Chart:Auto Fog
Display:5"CRT Monitor
Print:Thermal Printer
Power Supply:100-120v/220-240v,50/60Hz
Dimension:484x282x440mm
Weight:~20kgs
|
| |
![]() |

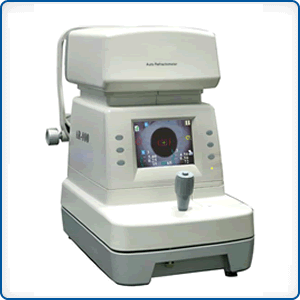

| AR800 |
|
 |
*Measured mor quikly because the Technology of Buile-in Micro process and
quick graphic process.Quick measurement for diopter of MIN.pupil size.
*New design of colorful sreen(5.7" TFT LCD）.
*Auto fog chart.
*Pupil distance auto measured available
*Choice for vertex distance.
Specification:
| MEASURING RANGE |
SPHERICAL -20~+20D(VD=12)0.12Dsteps |
| AXIS 0~180°,1° steps |
| PUPIL DISTANCE |
30~85mm,1mm steps |
| VERTEX DISTANCE |
0mm,12mm,13.75mm |
| MIN.PUPIL SIZE |
Φ2.0mm |
| CHART |
AUTO FOG |
| DISPLAY |
5.7" TFT LCD |
| PRINT |
THERMAL PRINTER |
|
|
| |
|
