| Slit Lamp |
|
| 390H Digital Slit Lamp |
|
*May the world first Motorized Focusing System(MFS) gives out the sharpest image only
by slightly moving the finger on the Mouse Roller.
*It also gives the options of viewing the patient's eye either through Microscope Eyepieces
or from the computer screen.
*With the most powerful Mediview Image Acquisition System,S390 could video record the
ovserved object during ophthalmic examination with the highest resolution up to 5 Mega pixels.
System Specification:
*image Sensor 5.0M Pixels
*Photo Resolution 2592X1944
*Format JPEG
*Video Resolution 1920X1080 1280X720
*Frame of Video 15fps/30fps
*Video For,ats TS
*Focus Mode Focus by moving the roller of the mouse
*Exposure Mode Automatic exposure,Automatic gain
*Transmission interface Standard USB port
|
| |
![]() |

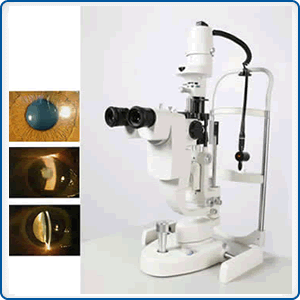

260S/260 Slit Lamp |
|
|
Specifications
*Microscope type: Galilean system
*Magnification changer: Revolving drum(5 steps / 3steps)
*Total magnification: 10X,16X,25X (type 260S)
6X,10X,16X,25X,40X (type 260)
*Ocular magnification: 12.5 X
*Ocular field: Ø18mm
*Inter pupillary distance: 52mm~78mm
*Diopter adjustment: +6D to -6D
*Object image field Ø in mm: 34.7(6X),22(10X),13.5(16X),8.5(25X),5.5(40X) (S280)
22(10X),13.5(16X),8.5(25X) (S280S)
*Slit image width: 0~14mm continuous
*Slit image length: 1~14mm continuous
*Light source: 3v/3w LED bulb ( halogen bulb available)
*Slit image radial range: 0กซ180°
*Filters: Heat aborption,grey,redfree(green),cobalt blue
*Aperture diameters: Ø0.5mm , Ø3.5mm , Ø8mm , Ø14mm , Ø1กซ14mm continuous
|

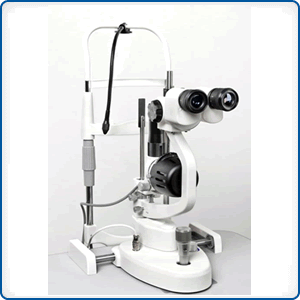

360S/360 Slit Lamp |
|
Specification:
*Microscope type: Galilean system
*Magnification changer: Revolving drum(5 steps / 3steps)
*Total magnification: 10X,16X,25X (type 360S)
6X,10X,16X,25X,40X (type 360)
*Ocular magnification: 12.5 X
*Ocular field: Ø18mm
*Inter pupillary distance: 52mm~78mm
*Diopter adjustment: +6D to -6D
*Object image field Ø in mm: 34.7(6X),22(10X),13.5(16X),8.5(25X),5.5(40X) (S350)
22(10X),13.5(16X),8.5(25X) (S350S)
*Slit image width: 0~14mm continuous
*Slit image length: 1~14mm continuous
*Light source: 3v/3w LED bulb ( halogen bulb available)
*Slit image radial range: 0กซ180°
*Filters: Heat aborption, grey , red free(green),cobalt blue
*Illumination fields Ø in mm: 0.2/1/2/3/5/10/14/1~14mm continuous
|
|
|
