Auto-Refractor

AR810

*With Auto-tracing feature, operator can adjust the focus and alignment in up and down directions
*With Auto video taping feature, operator can take measurements automatically once equipment obtains satisfactory focus and alignment.
*With Servo Chin-Rest, operator can adjust height of Chin-rest easily.
*Display is tilt-adjustable.
*Printer has a paper auto-cut feature.

Specification:

Measuring Range	-20～+20D(VD=12，0.12D/25Dsteps)
	-10～+10D（0.12D/25Dsteps）
	1～180（1°steps）
Pupil Distance	30～85mm（1mm steps）
Vertex Distance	0mm,12mm,13.75mm,15mm
Min. Pupil Size	2.0mm
Chart	Auto fog
Display	5 .7″TFT LCD
Print	Thermal Printer
Auto Tracing Function Range	±16mm(up and down direction only)

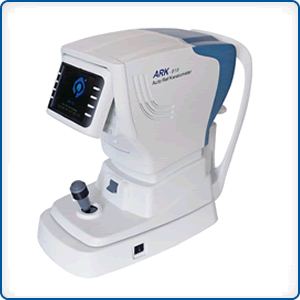

ARK810

Specification:

measurement mode	Cornea/ refractometry measurement mode	keratometry/ refractometry
	Mode of keratometry	refractometry
	Refractometry measurement mode	keratometry
Refractometry	Vertex Distance	0，10 ，12，13.5 ，15 ㎜
	Spherical degree	-20.00~+20.00D (VD=12 ㎜，0.12or0.25D )
	Cylinder degree	0.00~+/-10.00D (0.12 or 0.25D)
	Axial	1~180 °（step 1°）
	Cylinder Symbol	- ， + ， +/-
	pupil distance	30~85 ㎜
	Minimum pupil diameter	￠ 2.0 ㎜
	Measuring time	0.07sec
Keratometry	Radius of curvature	5.0 ~10. 2 ㎜
	Corneal refractometry	33.00 ~ 67.50D
	Corneal astigmatism	0.00 ~ -15.00D （0.12/0.25D ）
	Corneal diameter	2.0 ~ 12.0 ㎜
Others	printer	Thermal printer
	Monitors	5.7inch of TFT monitors
	Auto Tracing Function Range	±16mm (up and down direction only)
