Specification:

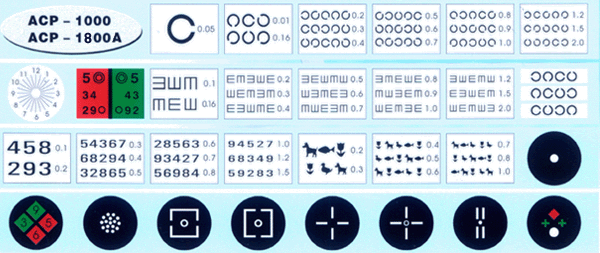

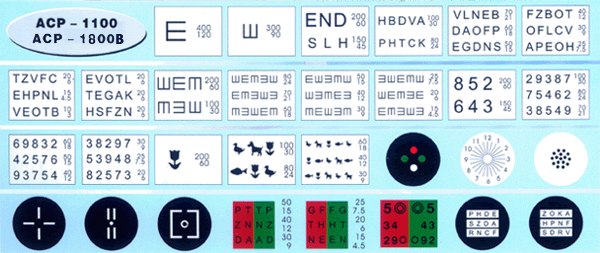

icon: 30kinds of choices
the speed of selecting the icon:average0.3s
manifestation: external manifestation
perpendicular line:letter
the distance of filter:red/green
the multpel of the chart projector:1.5m-6.0m
the multple of extending:3×(5m)
the size of projecting:
252m And 330(W)×225(H)mm(5m)
the angle of inclination:spheral connect
lamp:6V20W（Halogen),2000
source of electricity:AC220-240V 50/60Hz
lamp consumption:50VA
automatic switch function:After 5-10 minutes
size:(mail unit)：300(H)×230(W)×240(D)
(telecontrol instrument)：20(H)×61(W)×180(D)
: net weight:(mail unit)：6.0kg
(telecontrol instrument)：180g
components:dust sheet,plank of eyesight,
spare fuse,battery
